Engineering & Lift Planning Services
Lifting Studies & Techical Samples
Examples of engineered deliverables I prepare for clients: detailed 2D AutoCAD drawings and advanced 3D lift simulations. All work is fully remote – client provides survey data, load details and site photos;
I deliver complete packages (PDF, DWG, 3D files).
Deliverables typically include:
• Crane positioning & site layouts (AutoCAD)
• Rigging configurations & custom tools
• Ground bearing pressure & load distribution analysis
• 3D simulations for tandem/multi-crane operations and risk visualization
Full customized lift plans available upon request.

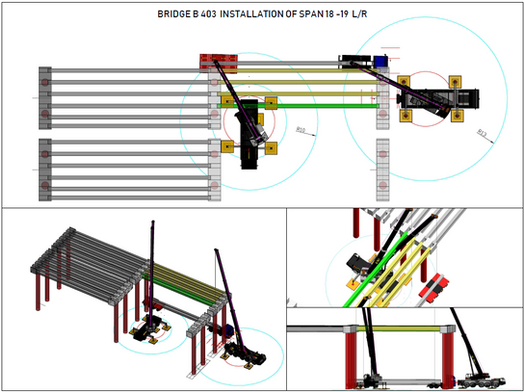

Crane Positioning & Site Layouts (2D AutoCAD)
Detailed technical drawings showing:
-
crane placement
-
outrigger mats
-
radius circles
-
load paths
-
exclusion zones and rigging lines for safe execution.
Rigging Plans & Equipment Configurations
Rigging diagrams with:
sling angles tensions, shackles, spreader beams, lifting lugs and custom tools for secure load handling.
3D Lift Simulations & Ground Capacity Analysis
3D simulations showing tandem/multi-crane setups, sling lines, load distribution, ground pressure zones (worst/best case) and tailing control for high-risk lifts.
